Nível a Laser Huepar S04CG-LC — 16 Linhas 4D com Detector e Tripé

Nível a Laser Huepar S04CG-LC — 16 Linhas 4D com Detector e Tripé

$299.90 CAD
$299.90 CAD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

🟢📏 Nível a Laser Huepar S04CG-LC — 16 Linhas 4D com Detector e Tripé

🔹 Precisão Profissional: Margem de erro mínima de ±3mm a cada 10 metros, garantindo alinhamento perfeito em qualquer projeto.

🟢 Laser Verde Alemão Osram (505nm-520nm): Mais visível, mesmo em ambientes externos ou muito iluminados.

🔄 Sistema 4D — 4 Linhas de 360°: Projeção completa para nivelamento em pisos, paredes, tetos e instalações complexas.

🛠️ Modos de Uso:

  • Autonivelante: Corrige automaticamente inclinações de até 3.5° ±1°

  • Manual: Para trabalhos personalizados em qualquer ângulo

⚡ Rápido e Eficiente: Nivela em até 3 segundos — ideal para quem não quer perder tempo!

🔋 Bateria Inclusa para uso imediato, sem preocupações.

📏 Perfeito para:

  • Instalação de pisos e revestimentos

  • Projetos de drywall e framing

  • Reformas e construções profissionais

💡 Certificações CE, EAC, FCC, RoHS — Segurança e qualidade garantidas.

🧰 Inclui:

  • Nível a Laser Huepar S04CG-LC

  • Detector

  • Tripé resistente

🚀 Garanta já seu Nível a Laser Huepar na BrazzaEcom e leve seus projetos a um novo nível de precisão e eficiência!


Huepar S04CG-LC 16 Lines 4D Green Laser Level Specifications:


Laser Class:

Class 2 (IEC/EN60825-1/2014),
<1mW power output

Projection:

16 green laser lines

Laser Wavelength:

505nm-520nm

Laser Diode:

Germany Osram Green Beam

Horizontal/Vertical Accuracy:

±3mm/10m(±1/9 inch at 33Ft)

Reference Operating Time:

About 5 hours with li-ion battery,

About 0.5 hours with AA battery

Leveling Time:

≤3s

Charging Port:

Type-C

Compensation Range:

3.5°±1°

Mount Size:

1/4"-20

Working Distance:

≥20m, ≥40m with detector

Operating Temperature:

Between -10℃and +50℃

Power Source:

7.4V/2600mAhLi-ion battery& 4 x AA battery

Storage temperature:

Between -20℃and +70℃

IP Rating:

IP54, waterproof, dustproof and shockproof, reliability and robustness


Warning:
Avoid direct exposure of the laser beam to the eyes.The laser would be affected by strong sun light when work outside.

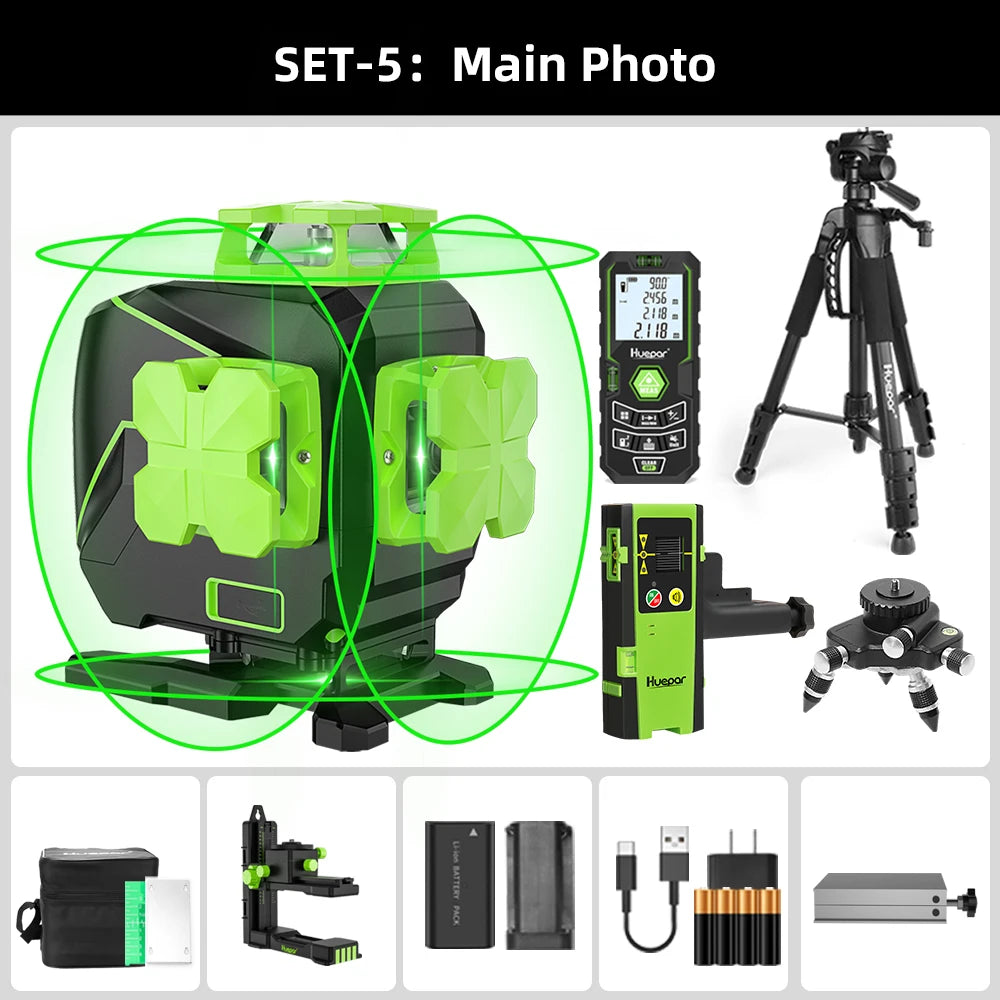

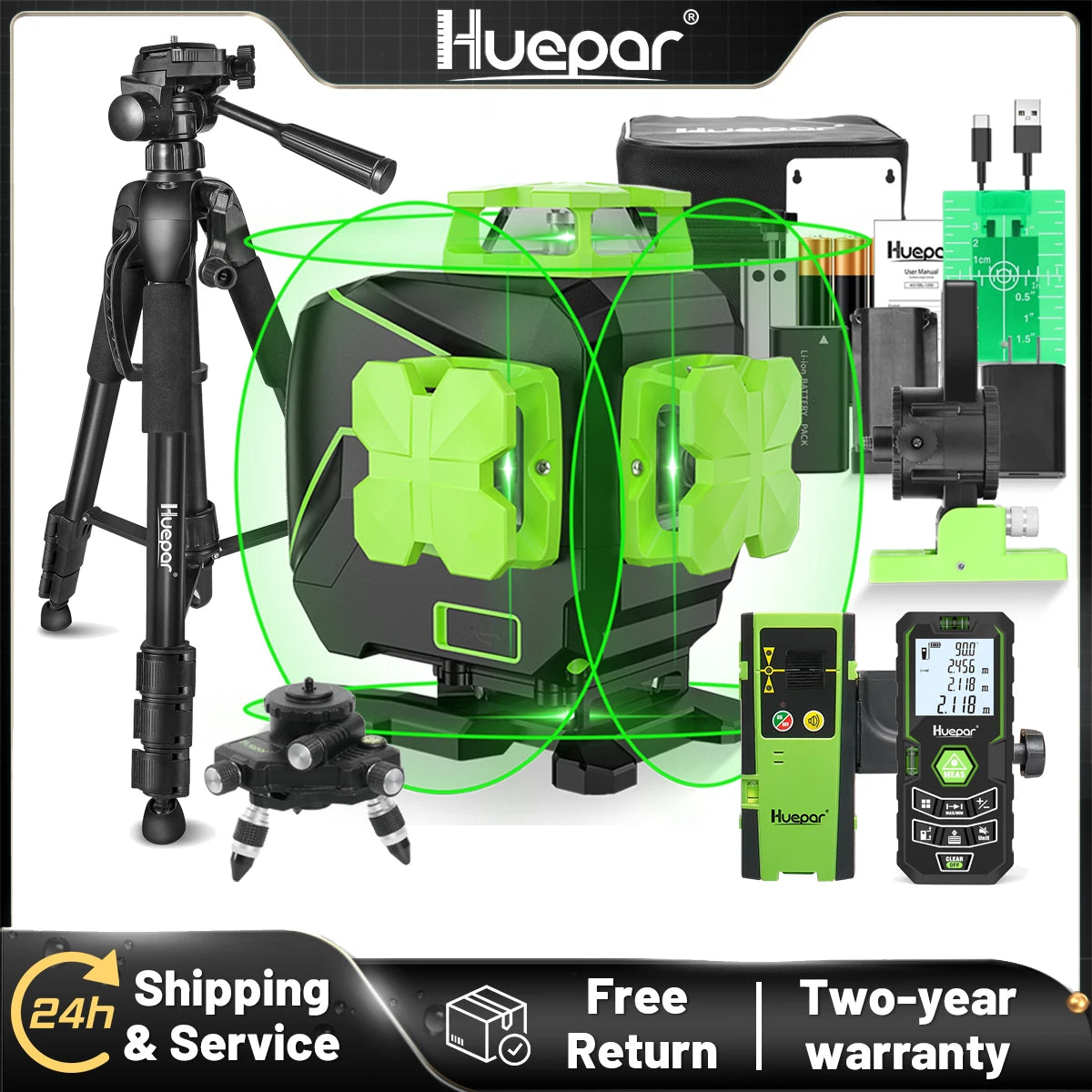

   Package Contents - S04CG-LC Main Photo-SET-5:


  • 1 x Huepar Green Laser Level S04CG-LC

  • 1 x Huepar LR-6RGA Laser receiver (or LR-8RG or LR-5RG)

  • 1 x Huepar TPD14A Tripod

  • 1 x Huepar AT2 Adapter

  • 1 x Huepar Rangefinder X6-LM120 (or LM100A)

  • 1 x Wall Hanging Plate

  • 1 x Multifunctional Pivoting Base

  • 1 x 2600mAh Li-ion Battery

  • 1 x Green Target Plate

  • 1 x Power Adapter

  • 1 x Lifting Base

  • 1 x AA Battery Compartment

  • 4 x AA batteries ( AA batteries are not included from China)

  • 1 x User Manual

  • 1 x Soft bag

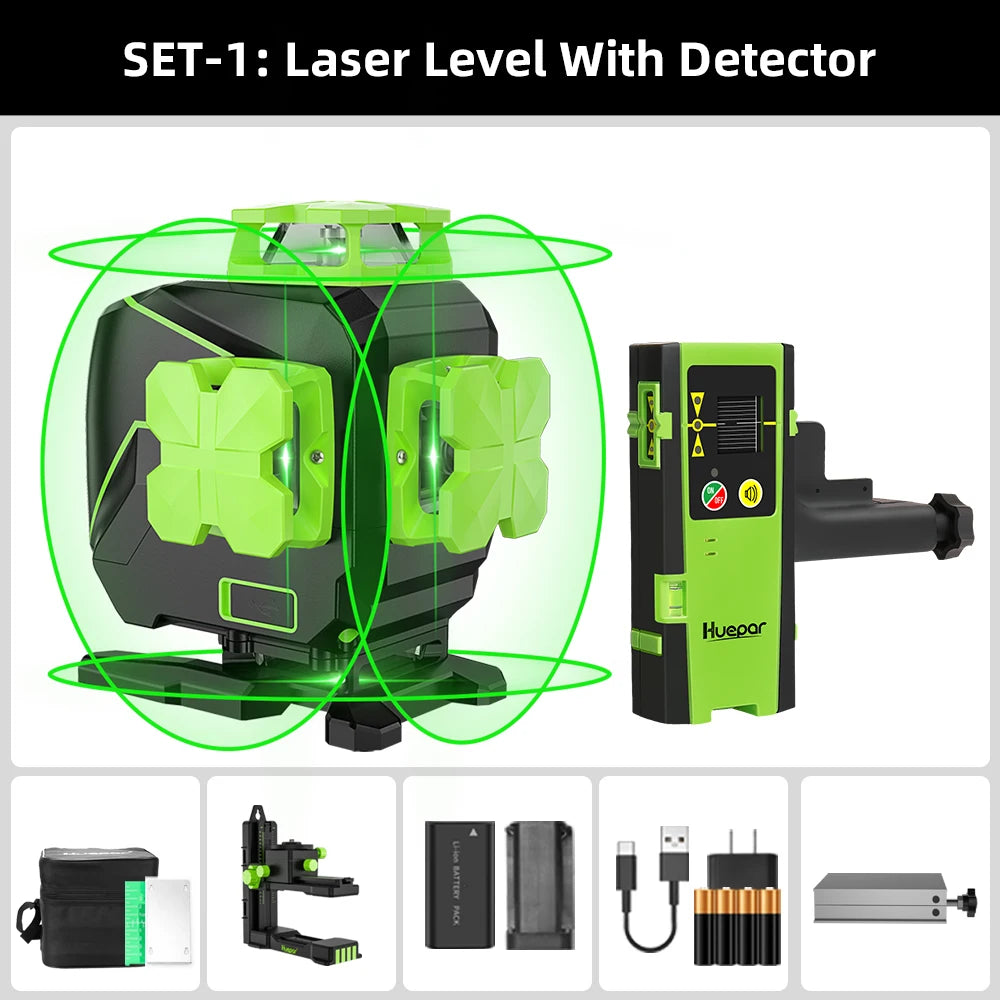

SET-1: S04CG-LC+Detector

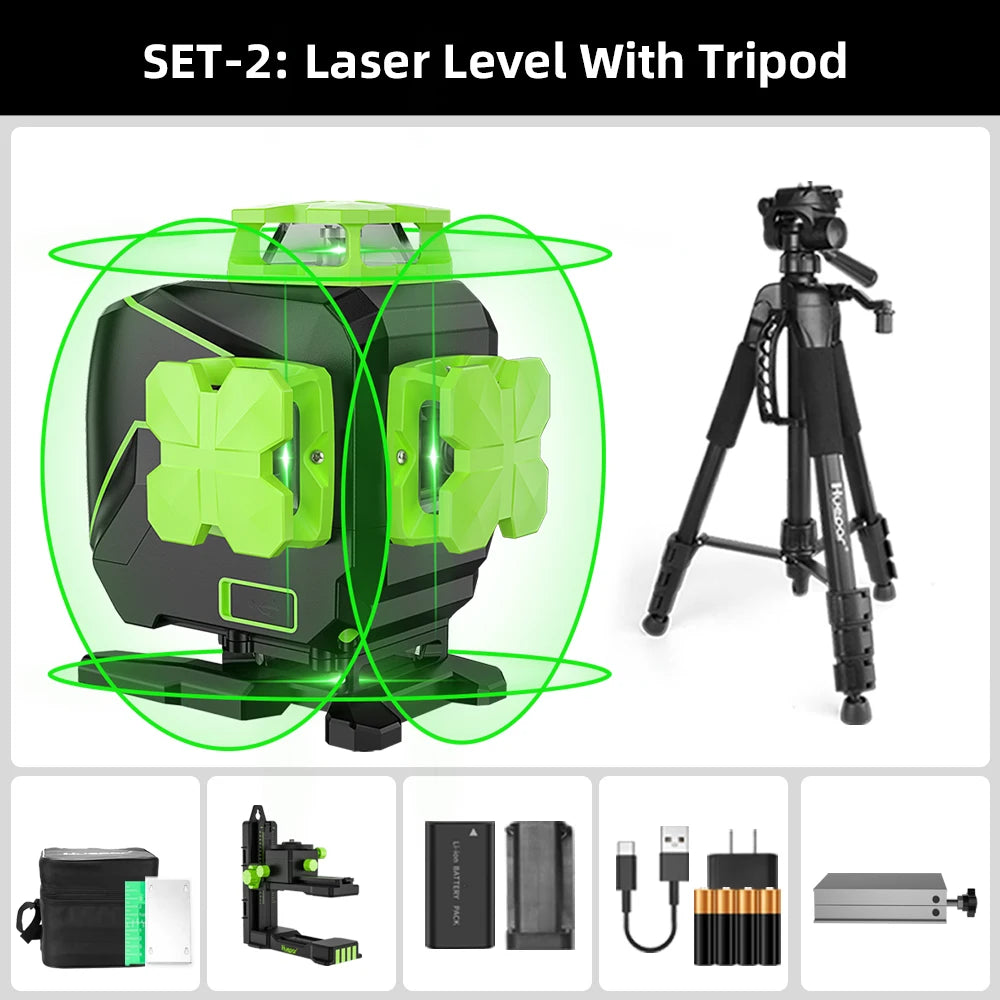

SET-2: S04CG-LC+Tripod

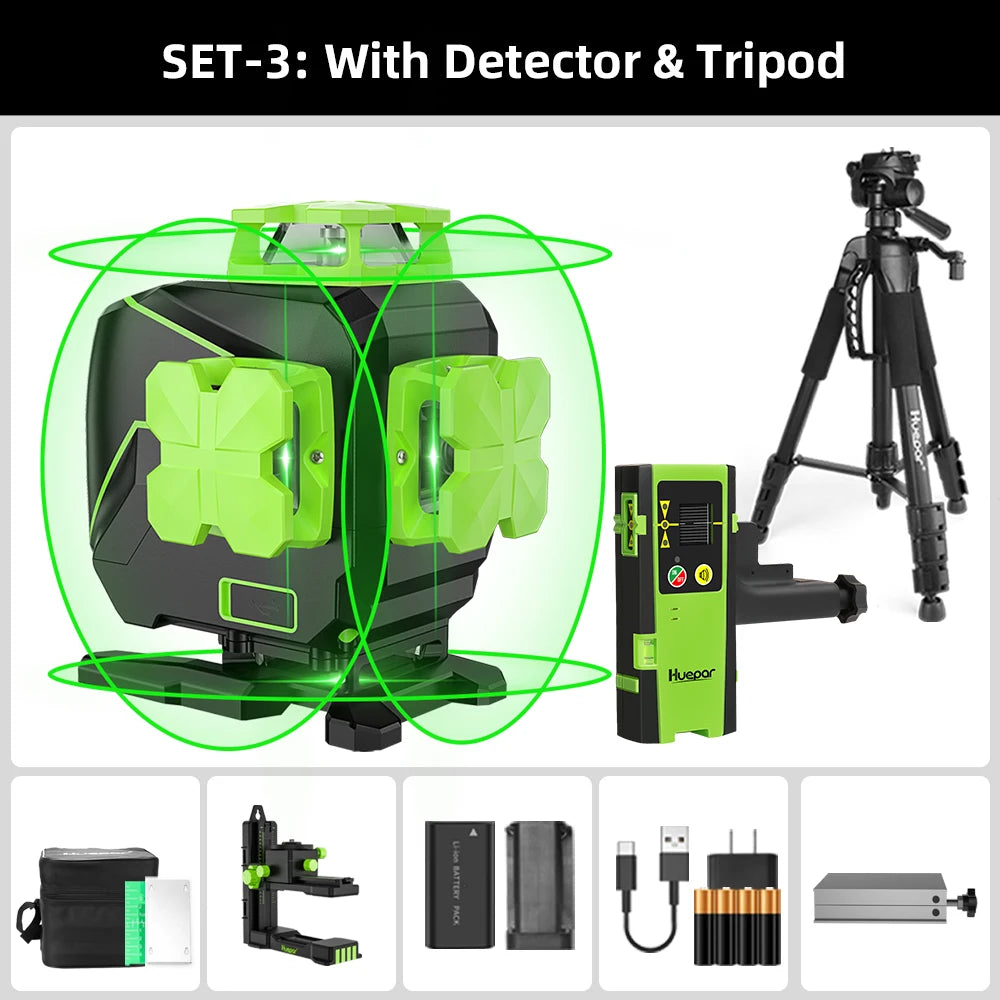

SET-3: S04CG-LC+Receiver+

Tripod

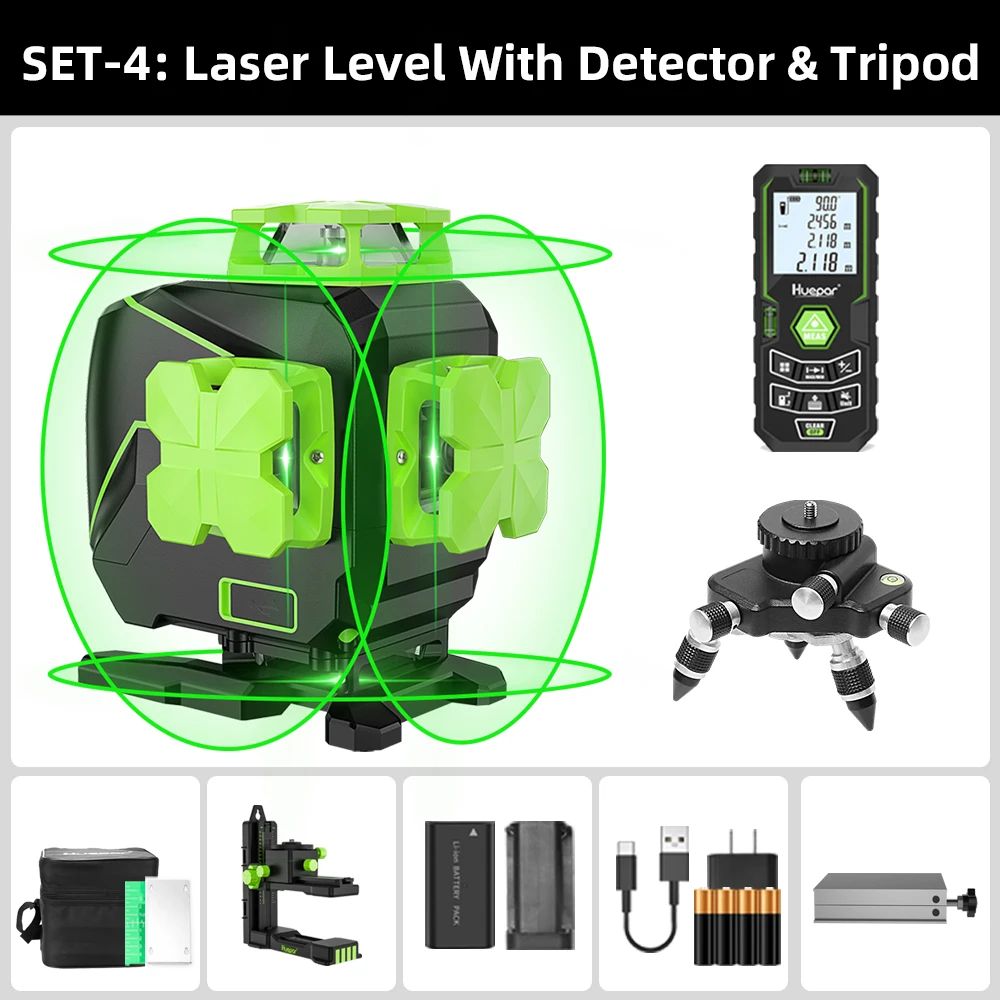

SET-4: S04CG-LC+Adapter+

Rangefinder

1 x Huepar Laser Level S04CG-LC

1 x Wall Hanging Plate

1 x Multifunctional Pivoting Base

1 x 2600mAh Li-ion Battery

1 x Green Target Plate

1 x Power Adapter

1 x Lifting Base

1 x AA Battery Compartment

4 x AA batteries ( AA batteries are

not included from China)

1 x User Manual

1 x Soft bag

1 x Huepar LR-6RGA Laser receiver (or LR-8RG or LR-5RG)

1 x Huepar Laser Level S04CG-LC

1 x Wall Hanging Plate

1 x Multifunctional Pivoting Base

1 x 2600mAh Li-ion Battery

1 x Green Target Plate

1 x Power Adapter

1 x Lifting Base

1 x AA Battery Compartment

4 x AA batteries ( AA batteries are not included from China)

1 x User Manual

1 x Soft bag

1 x Huepar TPD14A Tripod

1 x Huepar Laser Level S04CG-LC

1 x Wall Hanging Plate

1 x Multifunctional Pivoting Base

1 x 2600mAh Li-ion Battery

1 x Green Target Plate

1 x Power Adapter

1 x Lifting Base

1 x AA Battery Compartment

4 x AA batteries ( AA batteries are not included from China)

1 x User Manual

1 x Soft bag

1 x Huepar LR-6RGA Laser receiver (or LR-8RG or LR-5RG)

1 x Huepar TPD14A Tripod

1 x Huepar Laser Level S04CG-LC

1 x Wall Hanging Plate

1 x Multifunctional Pivoting Base

1 x 2600mAh Li-ion Battery

1 x Green Target Plate

1 x Power Adapter

1 x Lifting Base

1 x AA Battery Compartment

4 x AA batteries ( AA batteries are not included from China)

1 x User Manual

1 x Soft bag

1 x Huepar AT2 Adapter

1 x Huepar Rangefinder X6-LM120 (or LM100A)

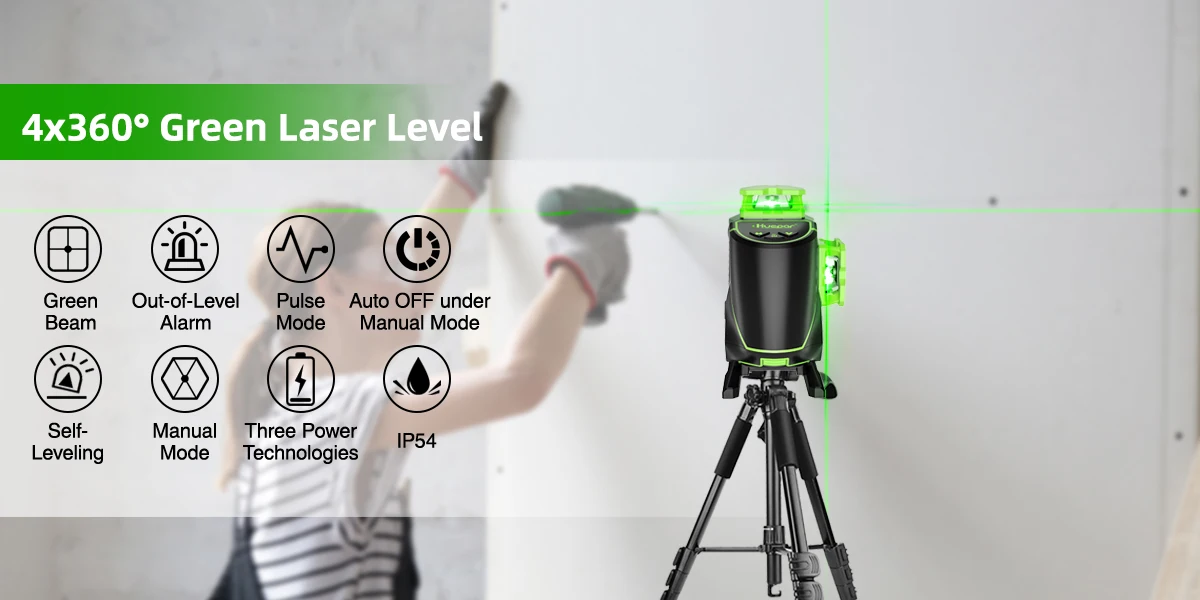

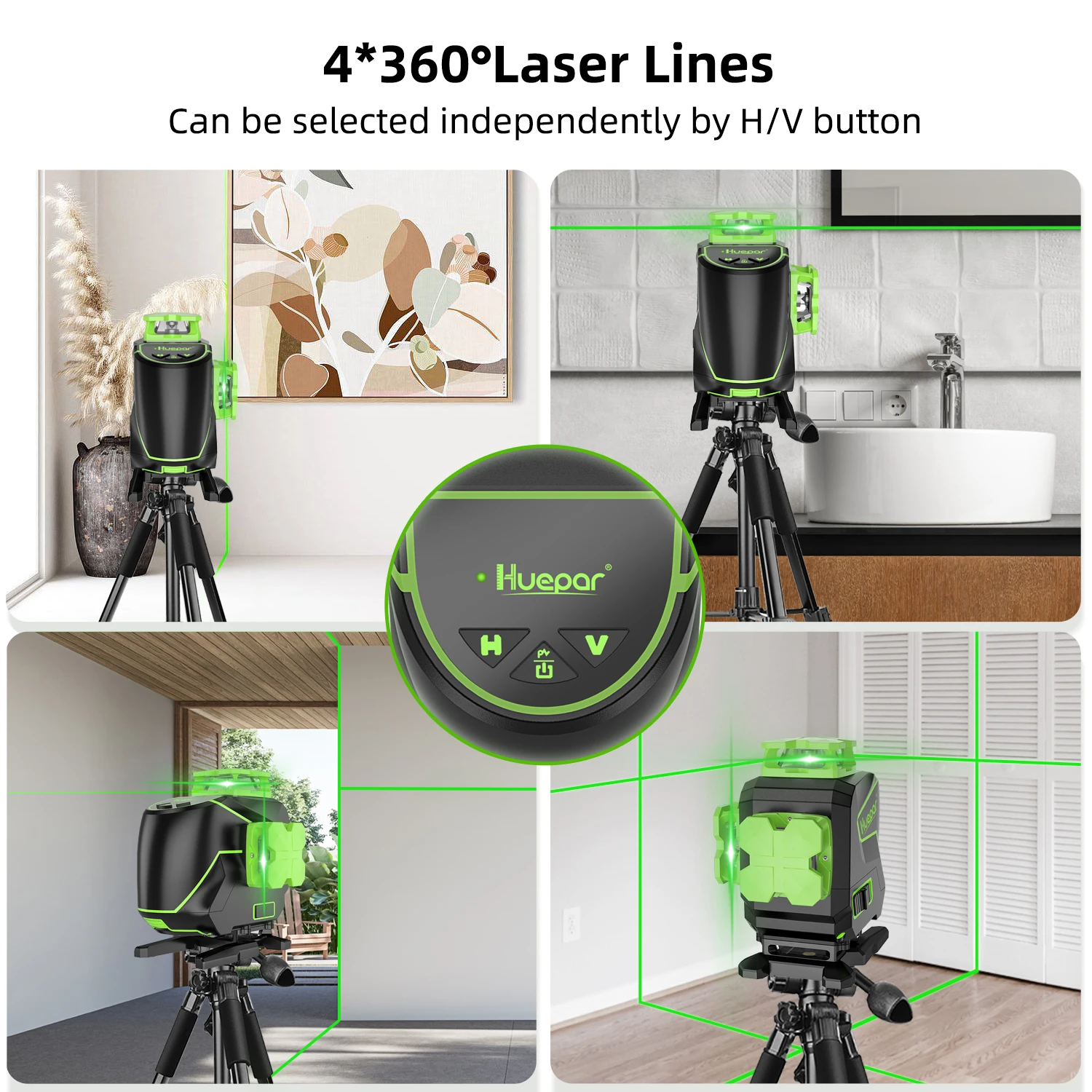

4 X 360°Laser Lines & Line Switching :

  • This laser tool provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° floor horizontal line is for tiling installation.

  • Two 360° vertical lines cross at 90°angles makes user quickly visualize and finish square layout.

  • Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

  • The four laser lines can be selected individually depends on job site applications.

  • Huepar S04CG-L laser level is a complete tool to cover the floor, wall, ceiling all around the room.

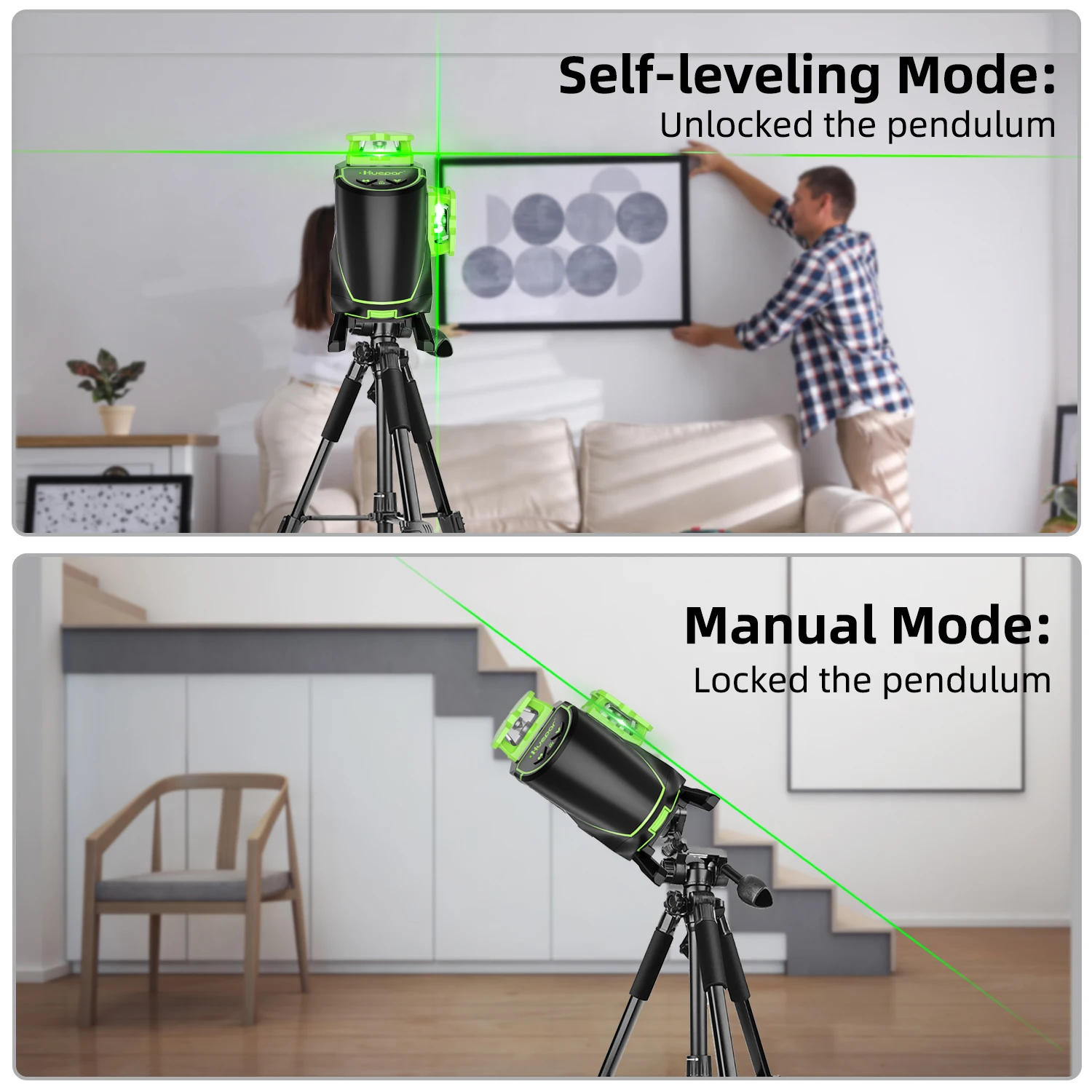

Self-leveling mode&Manual mode

  • Self-leveling mode: Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.

  • Manual mode:When the pendulum is in the locked position, the laser tool can be placed for use at any angle.The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.

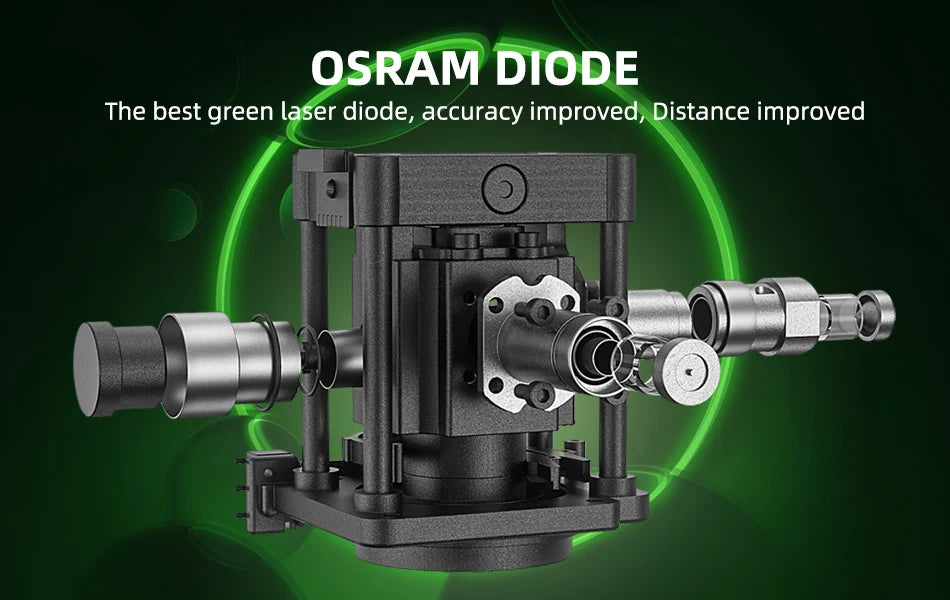

Imported Germany Osram Diode:
The laser device uses for imported Germany Osram diode, improve the accuracy and extend the working distance than other brand diode.

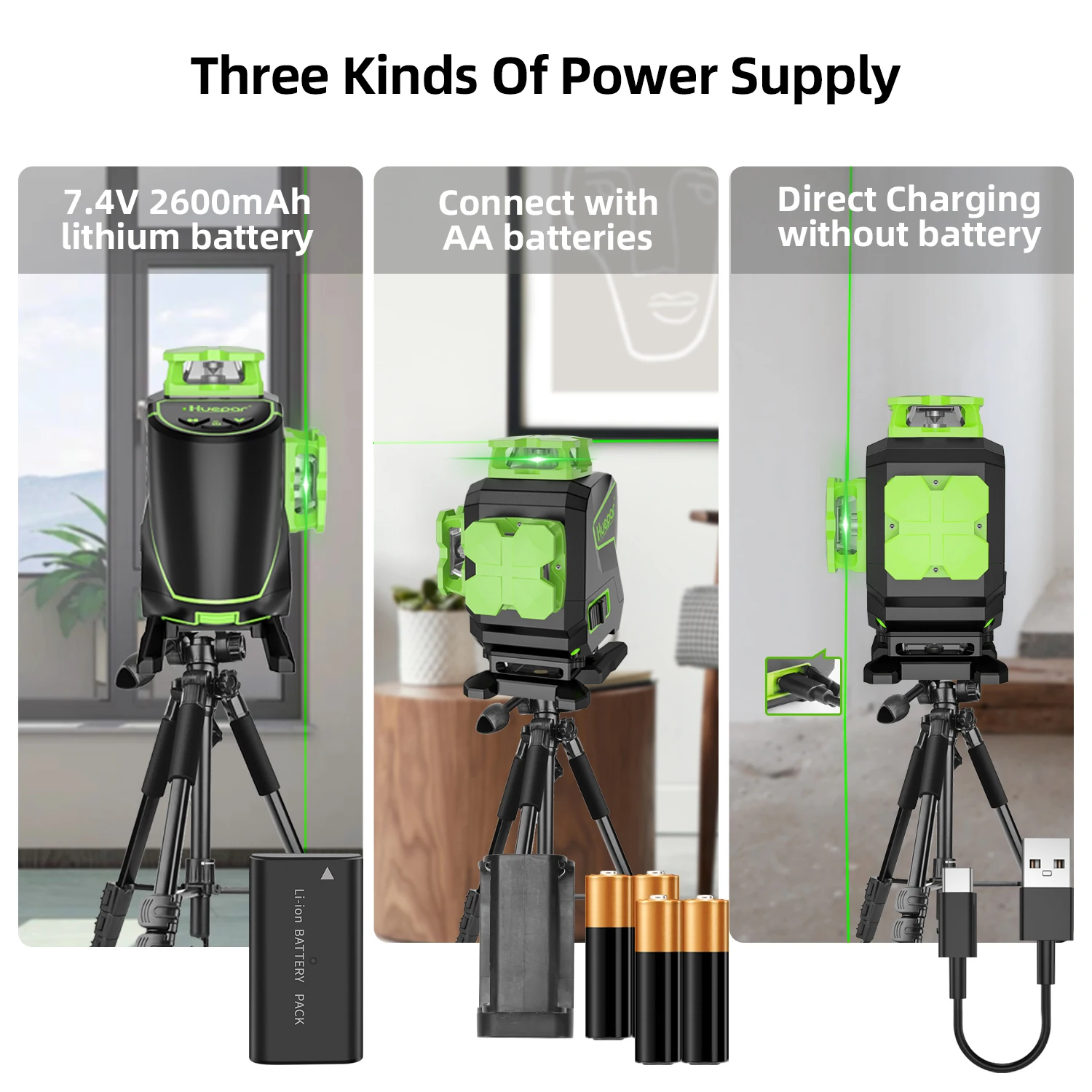

Triple Power Methods

  • This laser tool utilizes the included large capacity Li-ion battery which is compatible with Samsung SB-L110 battery.

  • Huepar 360 laser level also comes with a holder for installing 4 AA batteries to use the tool.

  • The 16 lines laser level can be used at the work site by plugged in directly when taking out the battery.

  • With Type-C charging port, the laser level can also be charged by laptop, power bank, car charger, etc.

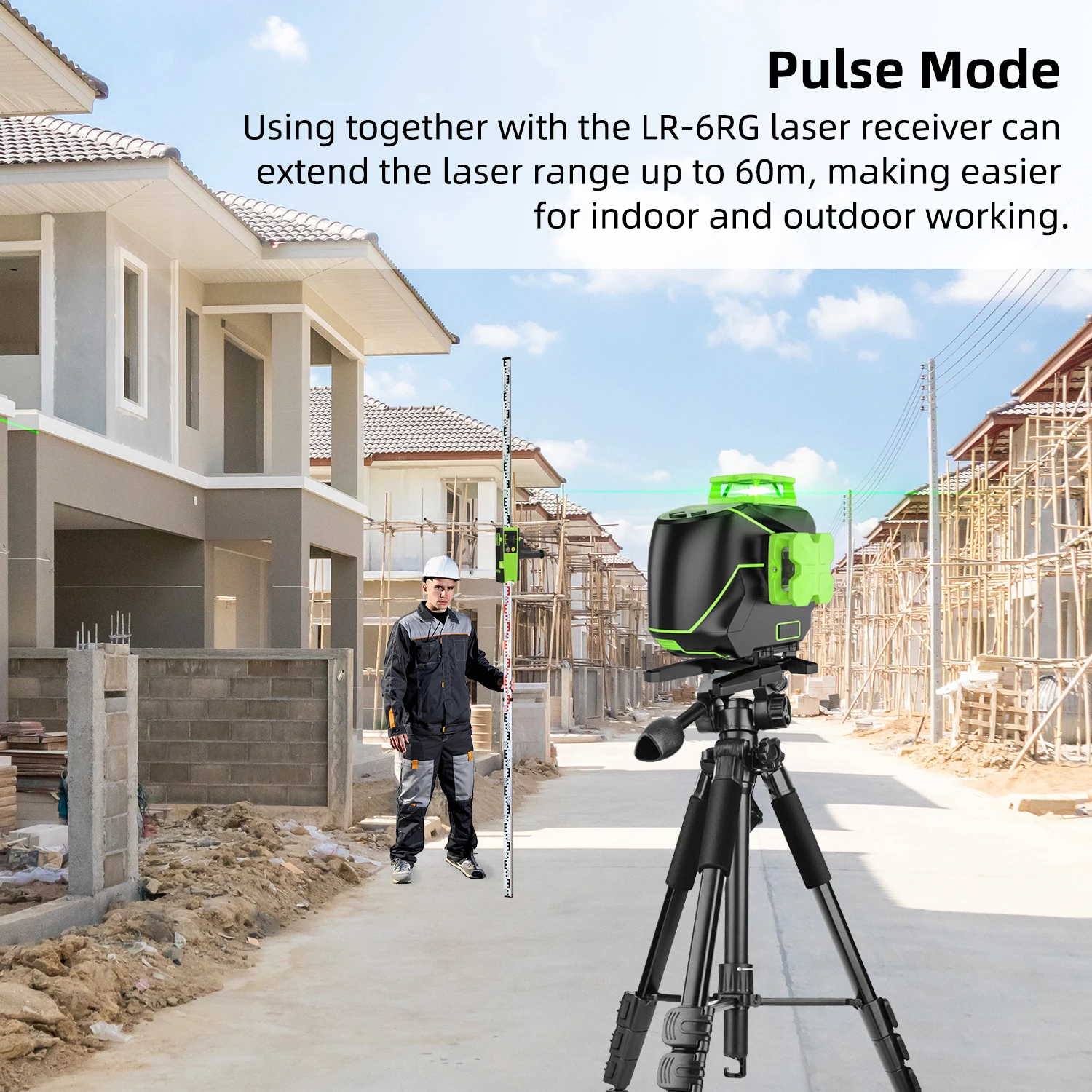

Pulse Mode

  • After power on, short press the power button to switch ON/OFF the pulse mode.

  • Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.

  • It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.

  • Note: Keep the pulse mode on when using with a receiver.

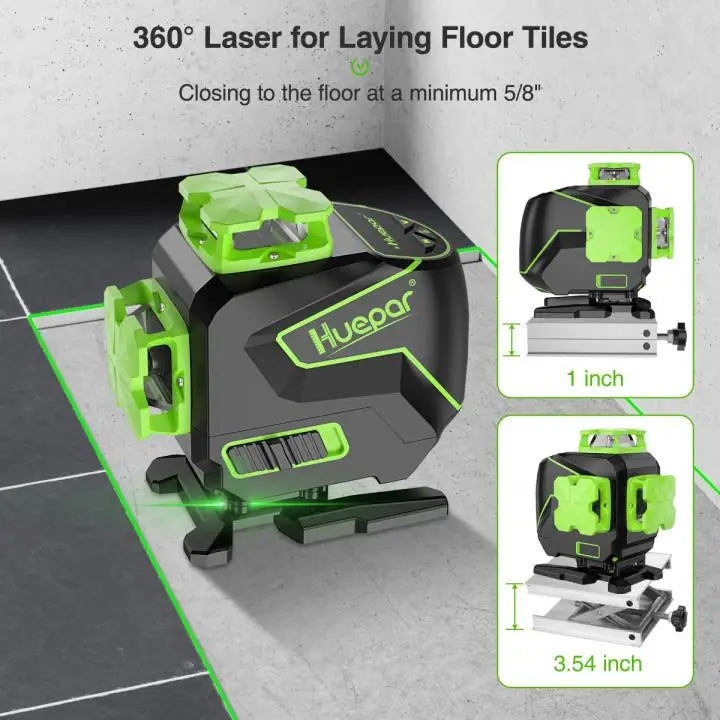

360° Horizontal Tiling Laser & Lifting Base

  • Huepar S04CG-L floor laser tool generates one 360°horizontal tiling laser on the floor or wall providing all-around leveling coverage for the layout of tile, stone, brick, carpet and hardwood flooring.

  • With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height.

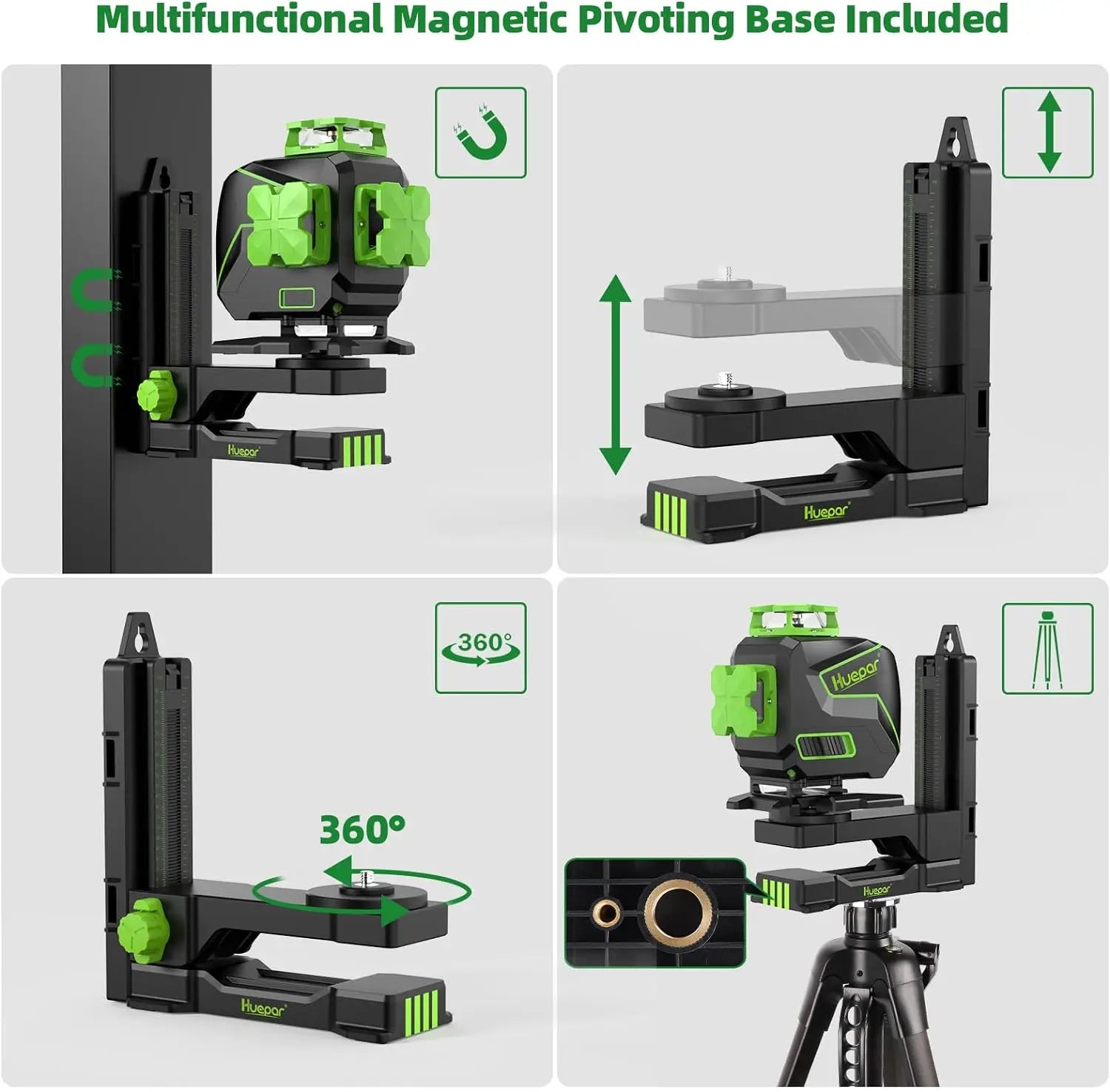

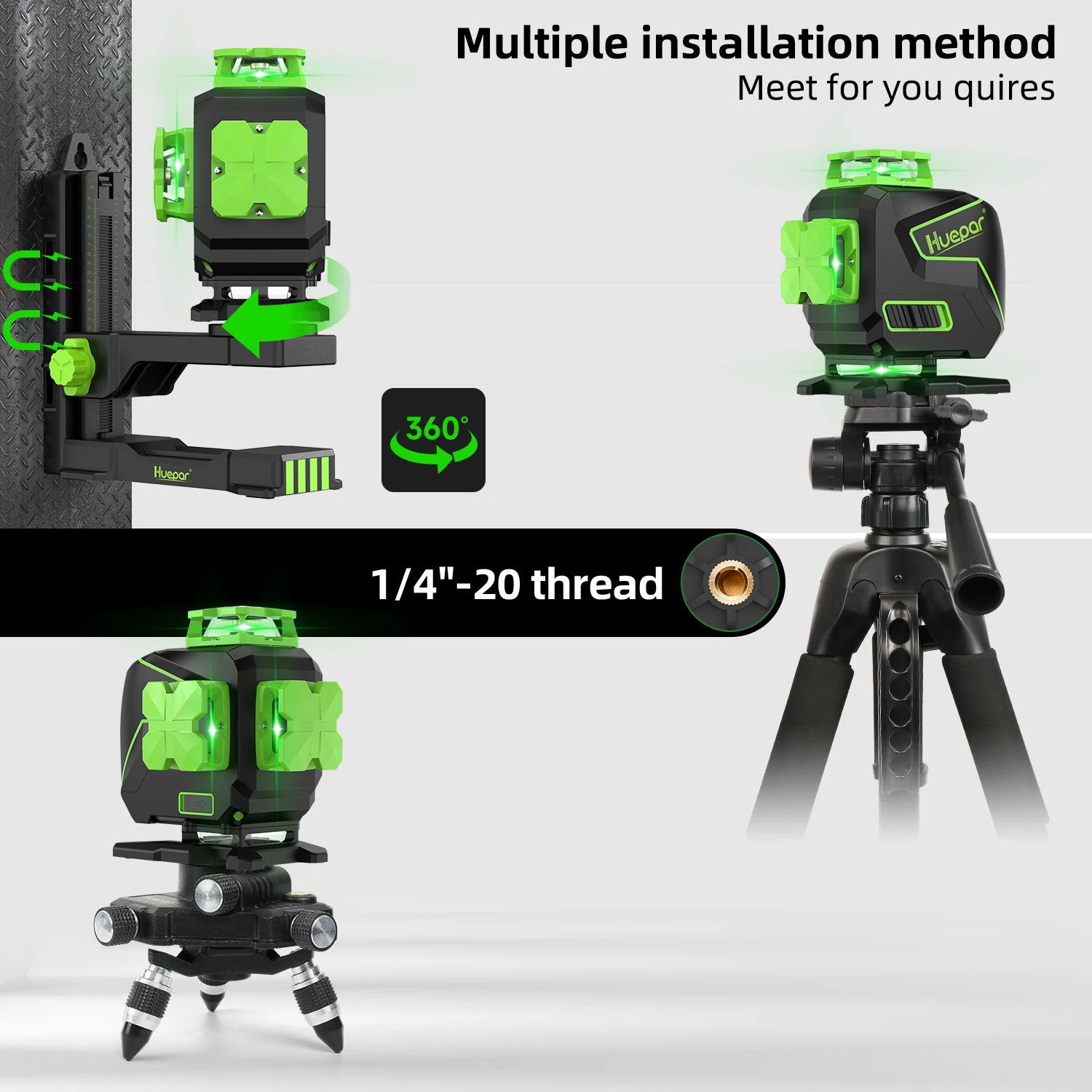

More Installation Methods

  • 1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.

  • 360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.

  • Green Laser Target Plate: Increases the visibility of the laser beam.

Durable Design & Multiple Applications

  • The laser tool is covered by TPR soft rubber, which delivers soft touch and stronger protection.

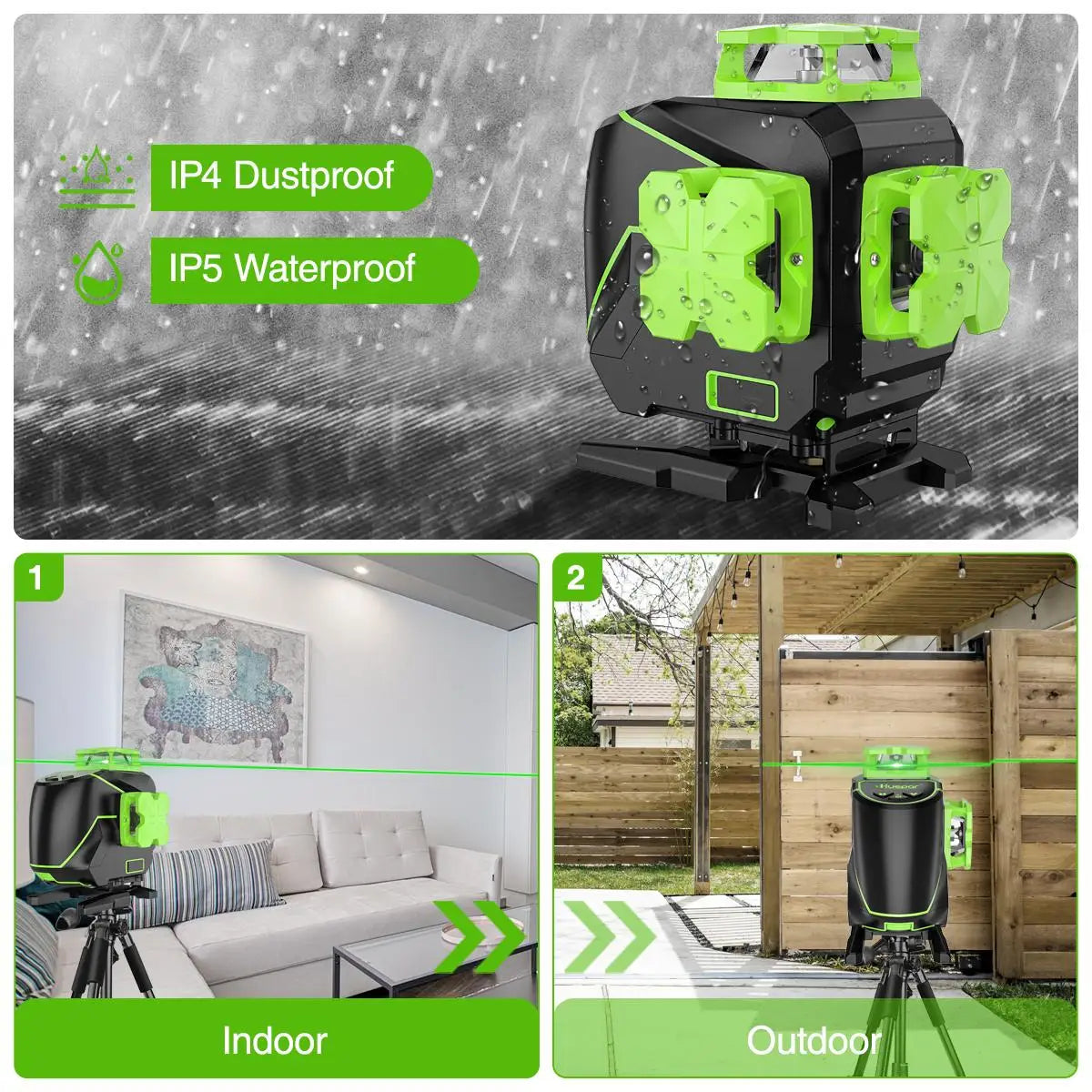

  • IP54 water/dust resistance ensures you work well in hazardous working conditions.

  • This cross line laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability.

  • The 16 lines laser level is a great tool for both indoor and outdoor job sites.

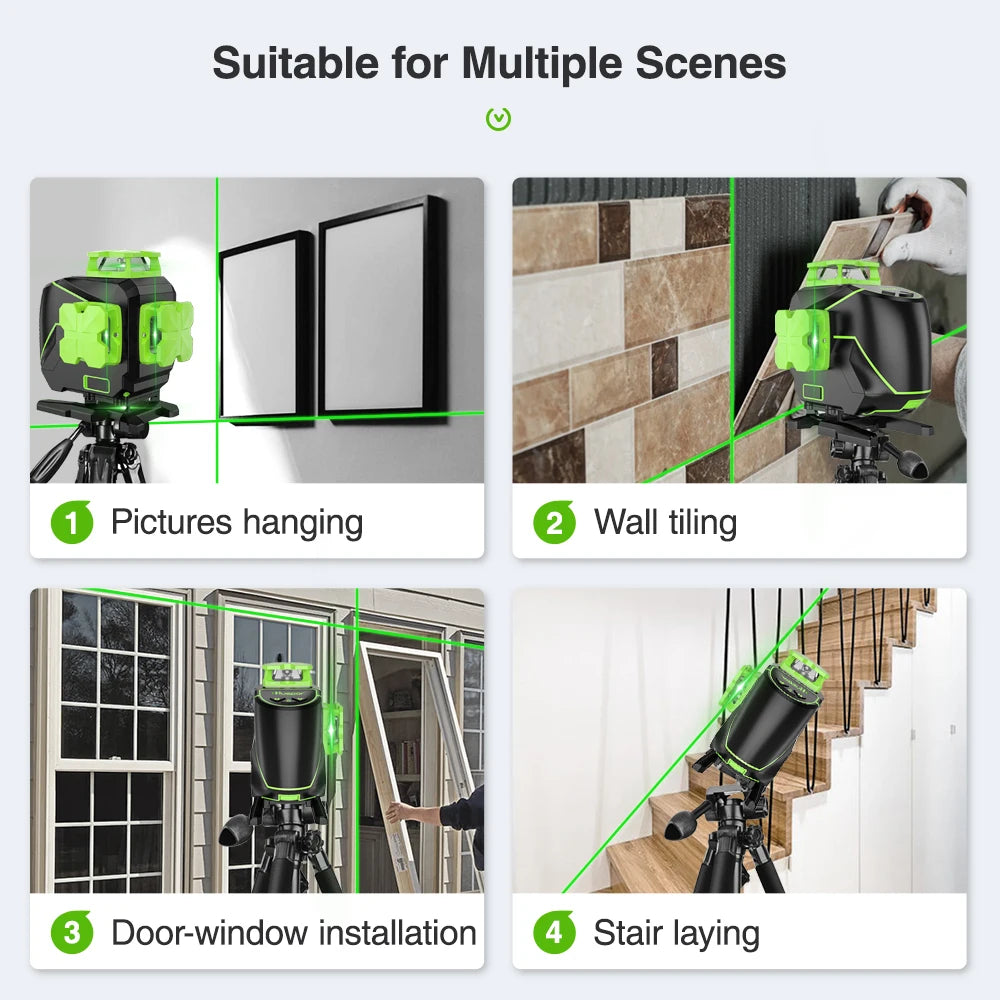

Suitable for Multiple Scenes
  • Huepar S04CG-L 4D Green Laser Level provides an all-in-one level and alignment solution for one-person job setup.
  • This 360° cross line laser tool is ideal for paving floor tiles, installing ceilings, door, window, or furniture carpentry, hanging wallpaper, etc.
  • The self-leveling laser tool enables complete coverage of the entire room.
